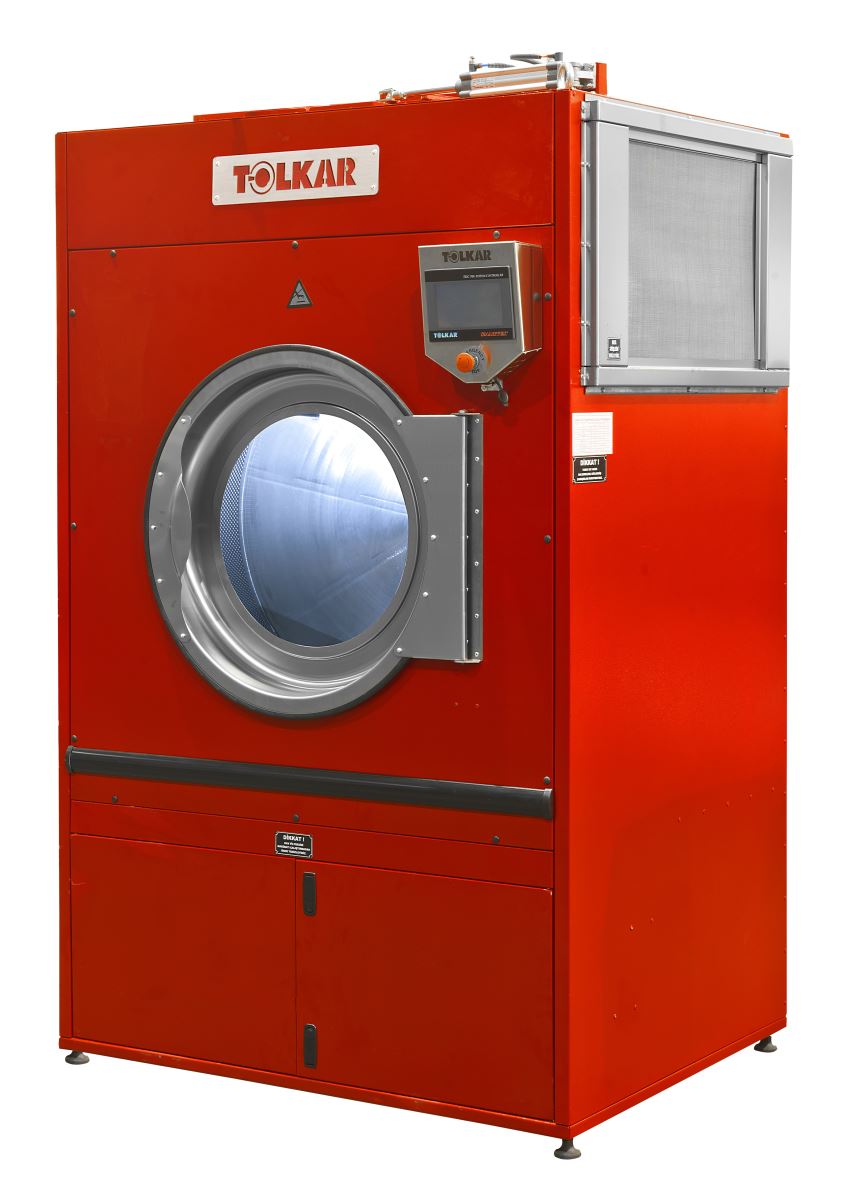

Carina

    Carina 201 Carina 305 Carina 400 Carina 500 Carina 600 Carina 605 Carina 800 Carina 1000 Carina 1200
Heating Type   Electric Elc/Stm/Gas Electric Elc/Stm/Gas Electric Elc/Stm/Gas Electric Elc/Stm/Gas Elc/Stm/Gas
Capacity 1/20 - 1/15 (Kg) 10/14 15/20 20/27 25/33 30/40 30/40 40/53 50/66 60/80
Capacity (Liter) 201 305 400 500 600 605 800 1000 1198
Drum Motor Power (Kw) 0,37 0,75 1,5 0,75 1,5 0,75 1,5 1,5 1,5
Fan Motor Power (Kw) 0,75 0,75 0,75 0,75 0,75 0,75 / 1,5 / 0,75 1,5 1,5 / 2,2 / 1,5 2,2
Electric Heating Power (Kw) 14 14 14 18 21 21 42 42 42
Steam Consumption (Kg/hr) - 38 - 38 - 44 - 81 95
Gas Heat Power (Kcal/hr) - 18.000 - 23.000 - 25.000 - 39.600 49.500
Air Flow (m3/hr) 1.300 1.300 1.300 1.300 1.300 1.500 3.900 3.900 / 4.500 / 4.500 4.500 / 6.400 / 6.400
Width (mm) 825 970 970 970 1.040 1.040 1.040 1.610 1610 / 1.640 / 1.610
Depth (mm) 915 870 870 1180 1.215 1.215 1.650 1.450 1.700
Height (mm) 955 1.750 / 1.750 / 1.910 1.750 1.750 / 1.750 / 1.910 1.775 1.775 / 1.860 /1.910 1.860 2.060 / 2.250 / 2.346 2.060 / 2.250 / 2.346
Weight (kg) 140 280 285 325 385 365 450 700 725

Tolkar reserves changing the technical specifications of the machines due to technological necessities without prior notice.

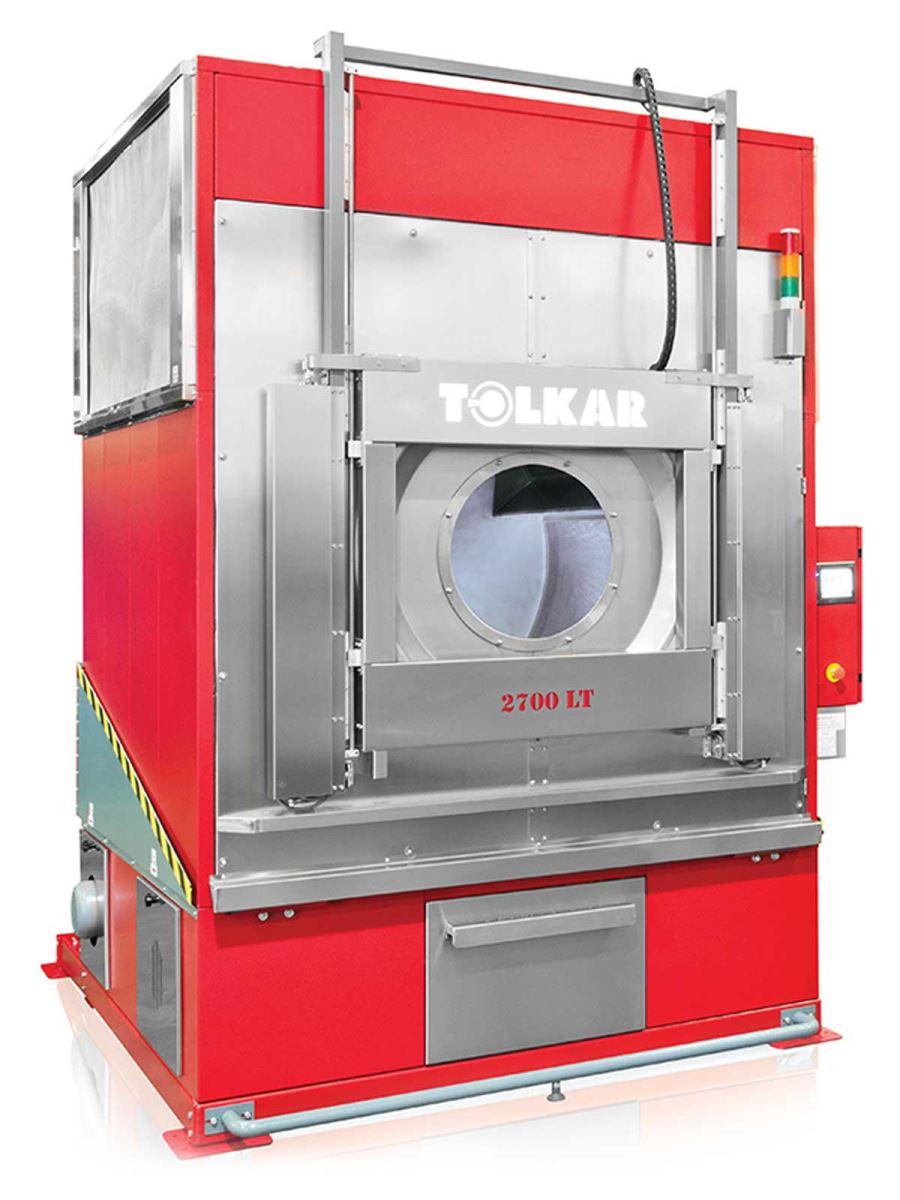

    Carina 1500 Carina1500* Carina 2200 Carina 2700 Carina 4069 Carina 5070
Heating Type   Elc/Stm/Gas Elc/Steam/Gas Steam/Gas Steam/Gas Steam/Gas Steam/Gas
Capacity 1/20 - 1/15 (Kg) 75 / 100 75 / 100 110 / 145 135 / 180 200 / 270 250 / 340
Capacity (Liter) 1.500 1.500 2.200 2.700 4.069 5.070
Drum Motor Power (Kw) 1,5 1,5 3 3 5,5 5,5
Fan Motor Power (Kw) 2,2 / 3 / 3 3 / 3 4 4x1,1 4x3 / 2x3 4x3 / 2x3
Electric Heating Power (Kw) 42 42 - - - -
Steam Consumption (kg/hr) 110 110 160 270 400 500
Gas Heat Power (Kcal/hr) 57.000 57.000 82.500 99.000 148.500 173.250
Air Flow (m3/hr) 4.500 / 6.400 / 6.400 6.400 / 6.400 6.400 / 6.400 11.000 22.000 / 11.000 22.000 / 11.000
Width (mm) 1.610 / 1.640 / 1.610 1.640 / 1.610 1.900 / 1.860 2.104 2.288 / 2.300 2.500 / 2.470
Depth (mm) 1.960 1.960 2.250 2.415 2.699 2.685
Height (mm) 2.060 / 2.250 / 2.346 2.525 / 2.645 2.560 / 2.970 2.637/3.047 3.105 / 3.421 3.160 / 3.530
Tilted Height(*) (mm) - 2.553 / 2.889 2.850 / 3.100 2.806/3.205 2.806/3.699 3.390 / 3.800
Weight (kg) 900 1.100 1.500 2.300 3.280 3.910
