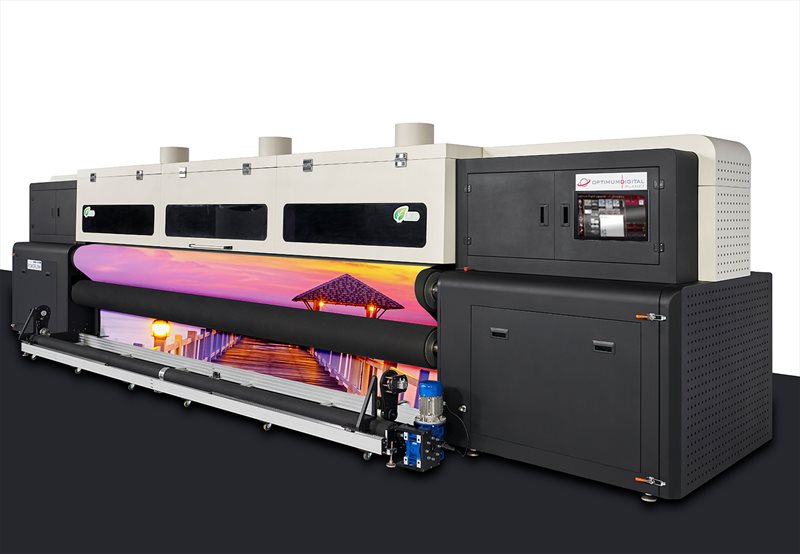

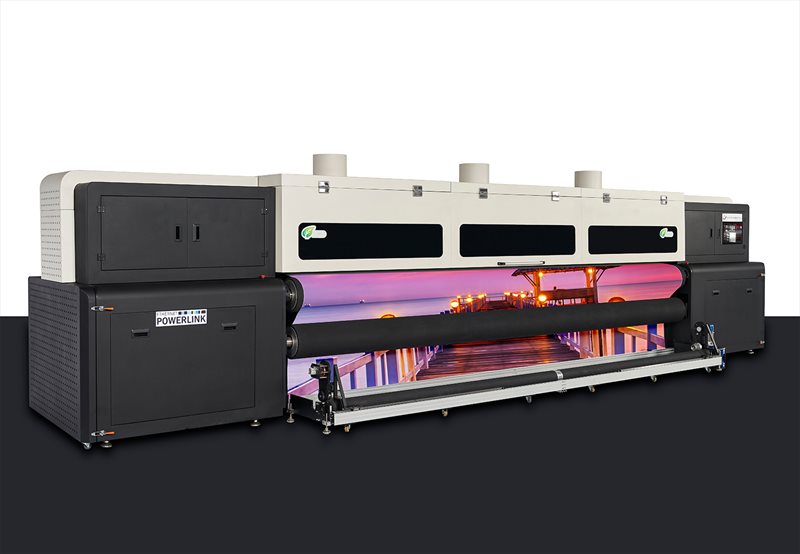

PICASSO UV 5016

چاپ UV

Technical Specifications

Print Width

Up to 5000 mm

Technology

Drop - On - Demand Piezo Inkjet Technology

Control System

PLC System

Color Scale



4 Colours (CMYK) Optional Colours LC+LM+W+Varnish

Printhead



Konica Minolta 1024-i /14 pL

Printhead Quantity Up to 16

Resolutions



Up to 1440 DPI

Material Thickness

Up to 20 mm
RIP Software



Caldera

Machine Weight 3000 kg.
Dimensions 8200mm x 2600mm x 1850mm
Power Requirement 230V(+/-) 10% / 30A / 50 HZ
Automatic Cleaning Recycling System
Curing System LED Curing System
