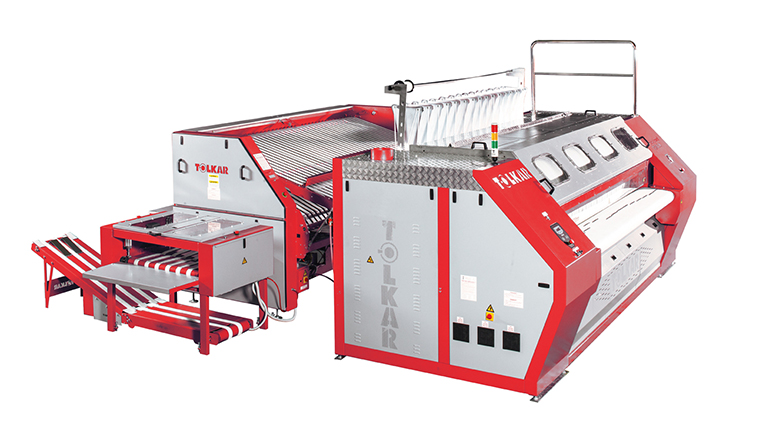

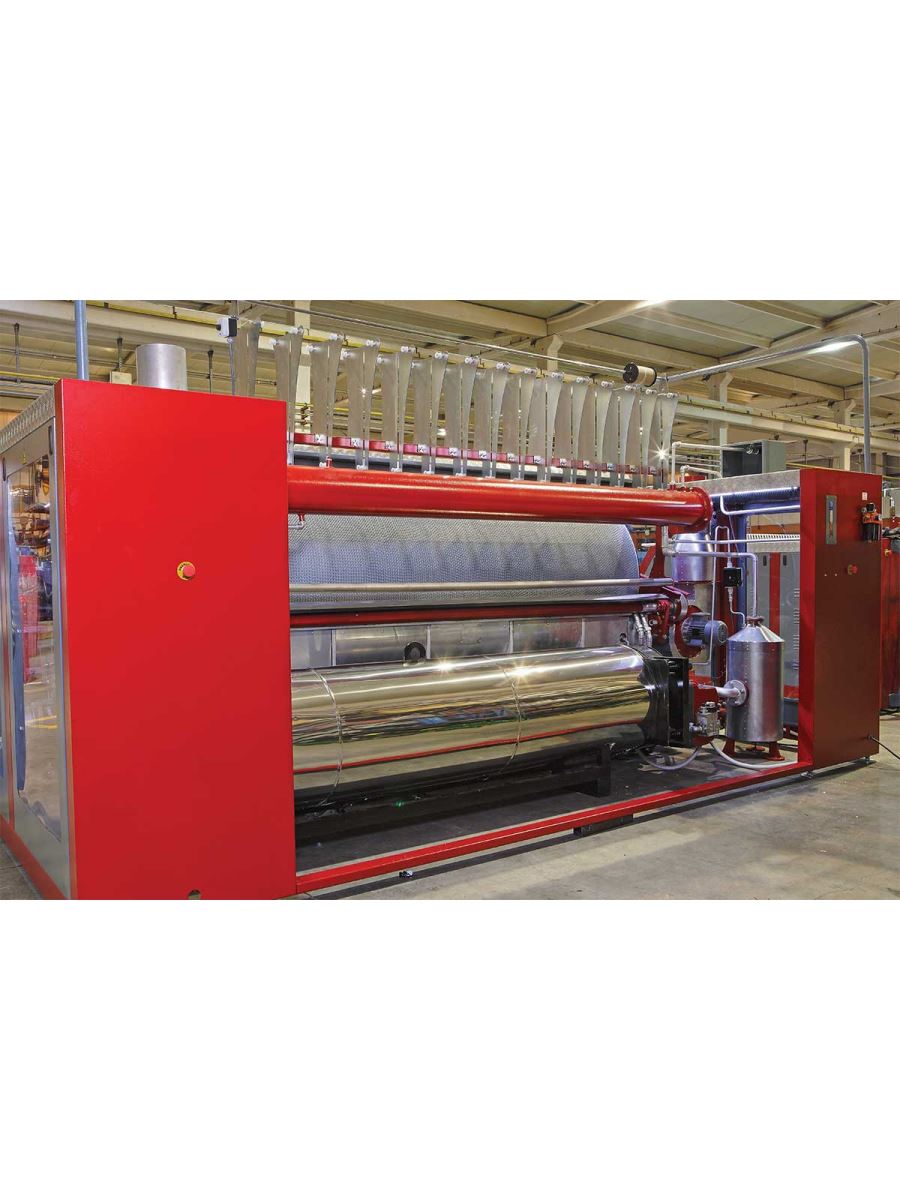

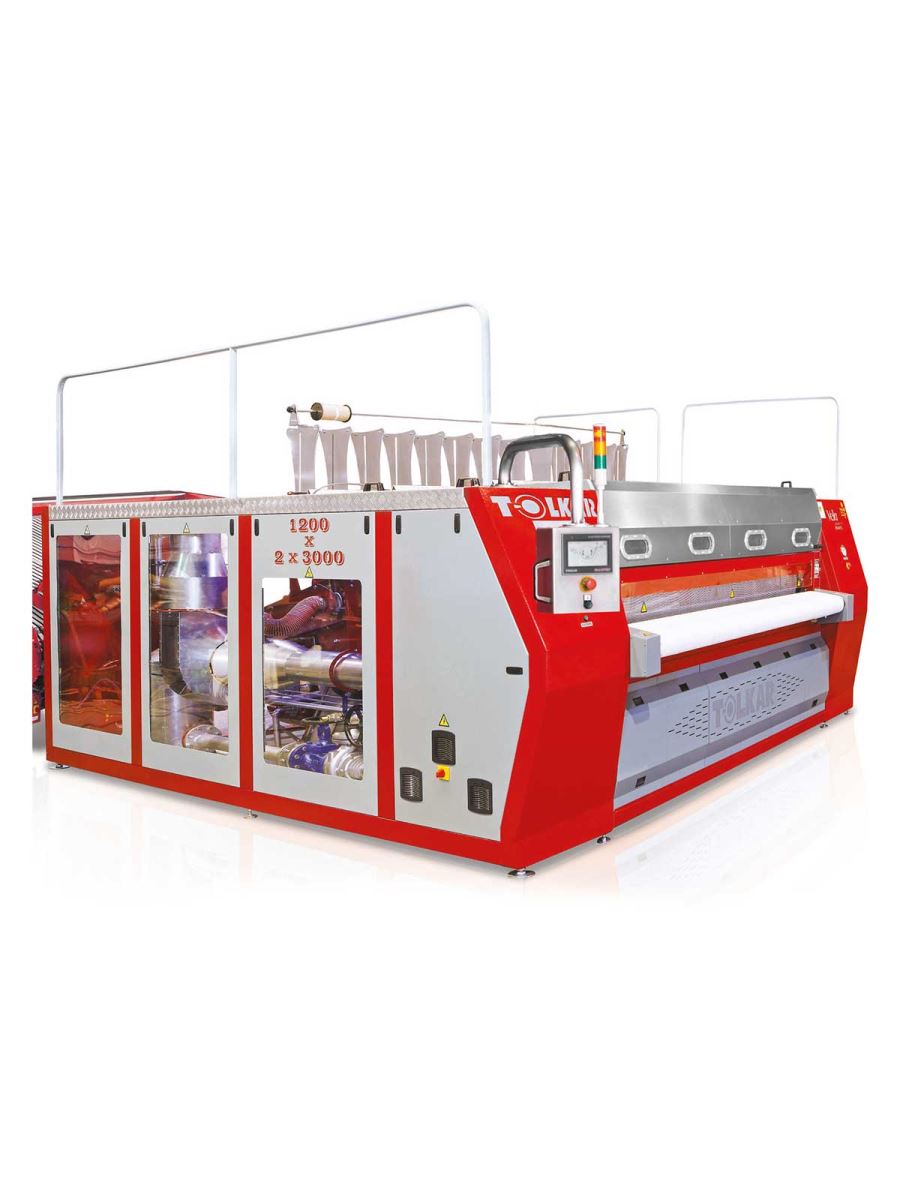

Vela CHI Chest Heated Ironers

ماشین آلات لاندری-سیستم های اتوکشی





    Vela CHI 18030 Vela CHI 28030 Vela CHI 38030 Vela CHI 18033 Vela CHI 28033 Vela CHI 38033 Vela CHI 112030 Vela CHI 212030 Vela CHI 312030 Vela CHI 112035 Vela CHI 212035 Vela CHI 312035
Heating Type   Elc/Stm/Gas Elc/Stm/Gas Steam/Gas Steam/Gas Steam/Gas Steam/Gas Elc/Stm/Gas Steam/Gas Steam/Gas Steam/Gas Steam/Gas Steam/Gas
Cylinder Capacity (pcs) 1 2 3 1 2 3 1 2 3 1 2 3
Cylinder Diameter (mm) 800 800 800 800 800 800 1.200 1.200 1.200 1.200 1.200 1.200
Cylinder Width (mm) 3.000 3.000 3.000 3.300 3.300 3.300 3.000 3.000 3.000 3.500 3.500 3.500
Ironing Capacity (kg/hour) 120 300 550 135 330 600 250 550 900 300 650 1.050
Ironing Capacity (pcs/hour) 200 500 850 220 550 950 400 850 1.500 400 850 1.500
Working Speed (m/min) 3/12 6/21 9/36 3/12 6/21 9/36 4/18 9/38 15/54 4/18 9/38 15/54
Motor Power (Kw) 3 2x3 3x3 3 2x3 3x3 7,5 2x7,5 3x7,5 7,5 2x7,5 3x7,5
Fan Motor Power (Kw) 0,75 1,1 1,5 7,5 1,1 1,5 1,5 2,2 2,3 2,2 2,2 3
Gas Heat Power (Kcal/hour) 66.825 123.750 195.525 66.825 123.750 195.525 106.425 200.475 297.000 125.400 247.500 374.550
Steam Consumption (kg/hour) 120 220 350 130 240 380 190 360 530 225 440 670
Width (mm) 4.335/4.560 4.335/4.560 4.335/4.560 4.635/4.860 4.635/4.860 4.635/4.860 4.839/5.059 4.839/5.059 4.839/5.059 5.339/5.559 5.339/5.559 5.339/5.559
Depth (mm) 1.700 3.330/3.870 4.460 1.700 3.870 4.460 2.171/3.253 4.050/4.476 5.260/5.660 2.171/3.253 4.050/4.476 5.260/5.660
Height (mm) 2.400 2.400 2.400 2.400 2.400 2.400 2.742 2.742 2.742 2.742 2.742 2.742
Weight (kg) 3.700 5.800 7.900 3.750 5.800 7.900 4.400 9.200 14.000 4.500 9.500 14.500
